Settings for MakInterface Pro Programmer



You need the following settings:



24Cxx

( I2C EEPROM)

Jumper settings

+--------------------+

| ooooo :::::::::: + |

| ooooo IIIIIII:I: - |

+--------------------+

- No Power supply required.

- Verifyed with: 24C01, 24C02, 24C04, 24C16, 24C32, 24C256

Pin4=A0+A1+A2+VSS+WP

Pin6=SCL

Pin5+Pin7=SDA

Pin8=VCC
25xxx

( SPI EEPROM )

Jumper settings

+--------------------+

| ooooo ::I::::::: + |

| ooooo II:IIII:I: - |

+--------------------+

- No Power supply required.

- Verifyed with: 25020

Pin2=CS

Pin3=WP+HOLD

Pin4=GND

Pin5=SO

Pin6=SCK

Pin7=SI

Pin8=VCC
59Cxx

(4-wireEEPROM)

Jumper settings

+--------------------+

| ooooo ::I::::::: + |

| ooooo II:IIII:I: - |

+--------------------+

- No Power supply required.

- Verifyed with: 59C11

Pin2=CS

Pin3=ORG

Pin4=VSS

Pin5=DO

Pin6=CLK

Pin7=DI

Pin8=VCC
93Cxx

( MicrowireEEPROM )

Jumper settings

+--------------------+

| ooooo :::::::::: + |

| ooooo IIIIIII:I: - |

+--------------------+

- No Power supply required.

- Verifyed with: 93C06, 93C46, 93C66

Pin2=S

Pin4=VSS

Pin5=DO

Pin6=CLK

Pin7=DI

Pin8=VCC





AT89Sxx

( Microcontroller )

Jumper settings

+--------------------+

| ooooo :::::;:::: + |

| ooooo IIIIII::I: - |

+--------------------+

- Power supply required

- Verifyed with 89S53

- Verifyed with 3.579MHz, 6MHz and 8MHz Quarz

Pin2= RST

Pin4= GND

Pin5= MISO

Pin6= SCK

Pin7= MOSI

Pin8= VCC

Pin,= XTAL1
PIC12C50x (Microcontroller)

Jumper settings

+--------------------+

| ooooo :::::::::: + |

| ooooo IIIIIII:I: - |

+--------------------+

- No power supply required

- Verifyed with 12C508/9

Pin4= VSS

Pin5+Pin7= GP0

Pin6= GP1

Pin8= VSS

Pin9= MCLR/VPP
PIC16Fxx

( Microcontroller )

Jumper settings

+--------------------+

| ooooo :::::::::: + |

| ooooo IIIIIII:I: - |

+--------------------+

- No power supply required

- Verifyed with 16F84/84A

Pin4= VSS

Pin5+Pin7= RB7

Pin6= RB6

Pin8= VDD

Pin9= MCLR

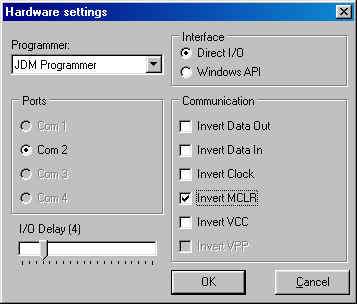

For the other PIC Microcontrollers please consult the Microchip Datasheets for the Pinout and connection. The IC-Prog Hardware setup and the Makinterface Jumper settings are the same.

For additional information you can contact MakInterface
