To add MicroWire support to your JDM Programmer

just add to components:

• Resistor (~5k)
• Zener diode (4.7v)

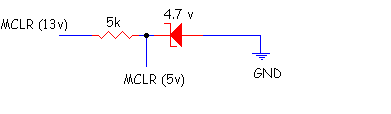

just connect the MCLR to the resistor. Connect the resistor to the zener cathode and

connect the anode of the zener to the ground.

Take the cathode of the zener (which is connected to the resistor) and that is your new MCLR signal.

Now you have a mclr of 5v instead of 13v!!

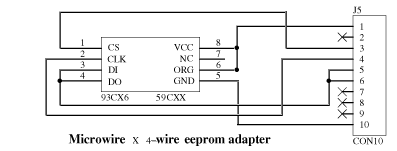

Here is the adaptor for Microwire (93Cxx) and 4-Wire (59Cxx) devices:

1 = VCC

3 = MCLR (5v)

4 = CLOCK

5 = DATA OUT

6 = DATA IN

(On most programmers DataIN and DataOUT or combined to 1 signal. If not, separate them in adaptor as well)
